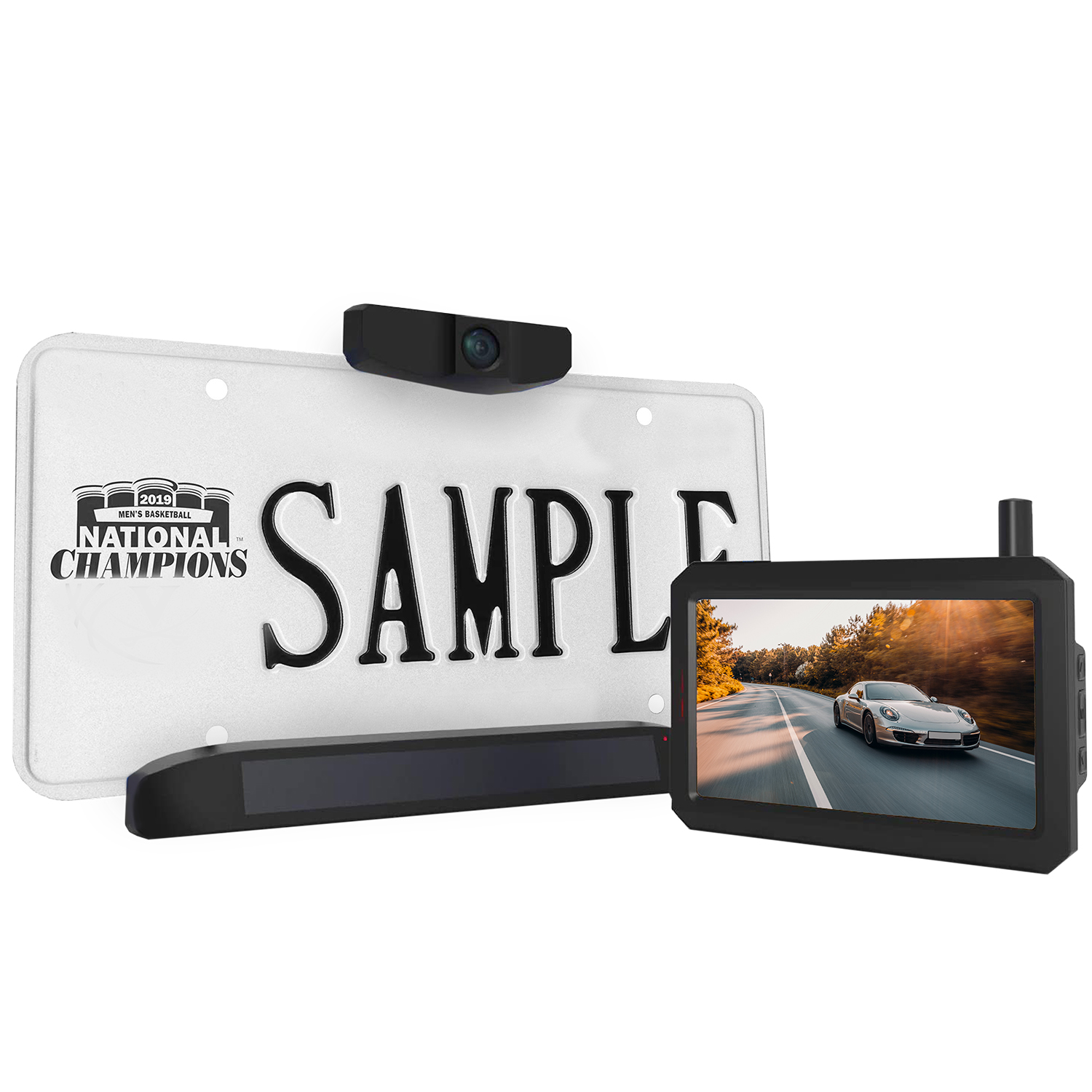

Solar Wireless Reversing Camera

Solar Wireless Reversing camera is a breakthrough technology with completely easy DIY, plug and play. With the build in Lithium battery it is NOT necessary to wire the power cable to the camera. Battery capacity can be top up by Solar panel and therefore the system can run for years without running out of battery.
  • Solar Wireless Reversing Camera High Compatibility
  • Solar Wireless Reversing Camera Night Vision
  • Solar Wireless Reversing Camera Weatherproof
add to require
  • Solar Wireless Reversing Camera

    Camera &Monitor

    • Solar and battery power
    • Complete wireless
    • 21% solar conversion efficiency
    • Lowest standby current 1mA
    • Highest battery capacity 2800 mAh
    • Non-removal, USB port easy charging



    • IP68 outdoor waterproof
    • 2.4G digital, built-in transmitter and receiver
    • Wide transmission 15 meters in use case(100M in barrier free space)
    • 1/3" sensor image size is better performance than common 1/4“
    • Just charge it once half an year if 30 mins daily exposure to the sunlight
    002Pic

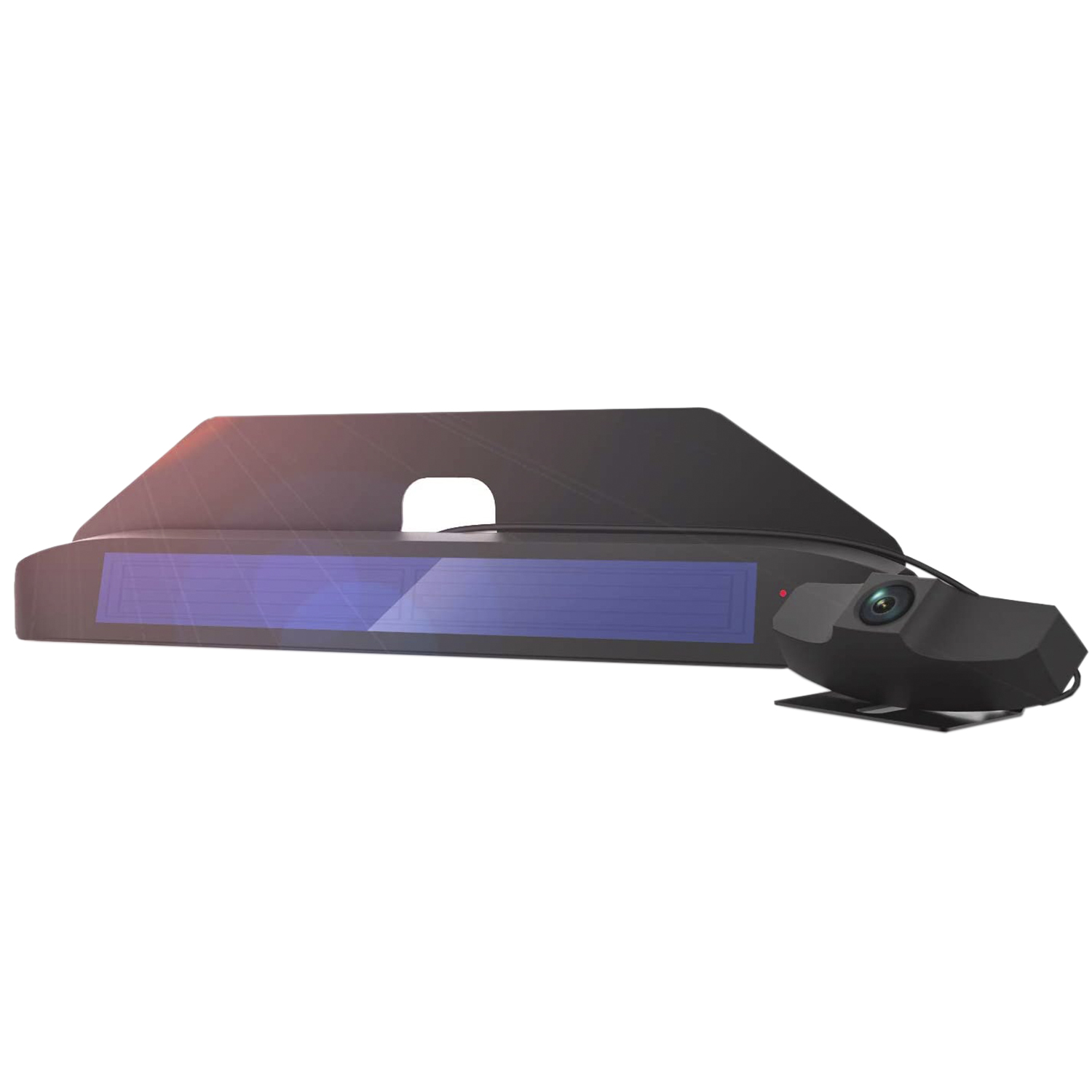

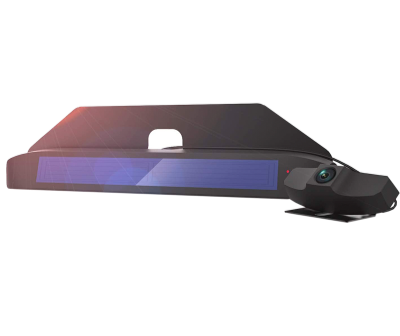

    CAMERA

    Image Sensor PC1058 chipset
    Lens 1/3 inch
    Viewing angle Diagonal 140°
    Operating Temperature -20℃~65℃
    Output Power 12dBm±2dBm
    Working Current 200mA
    Waterproof IP68
    Battery capacity 2800mAh
    002Pic

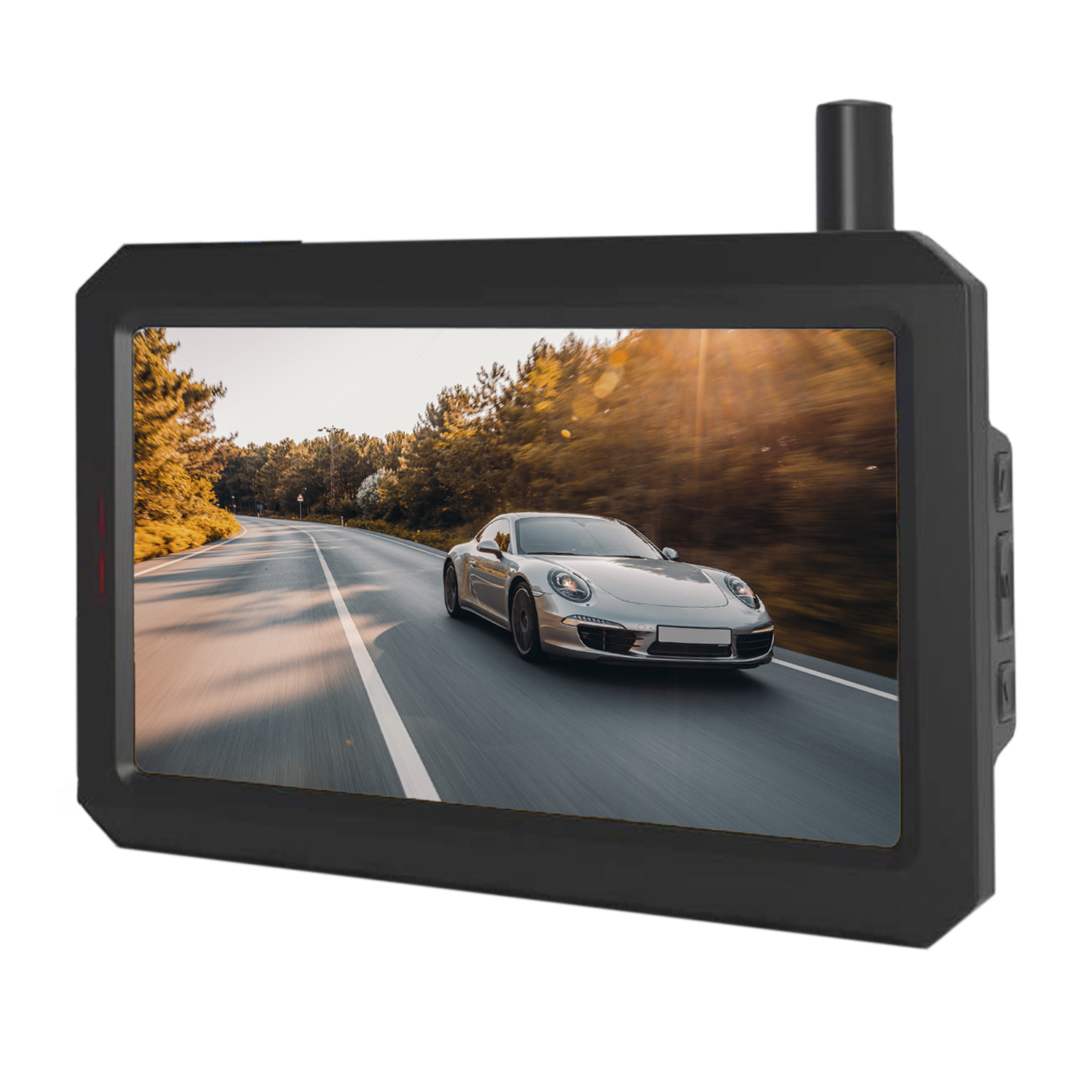

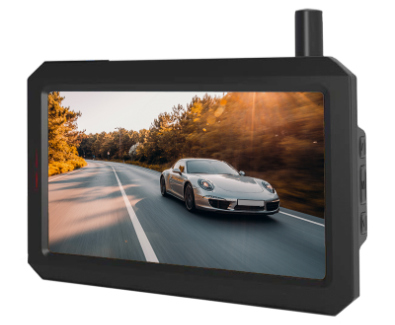

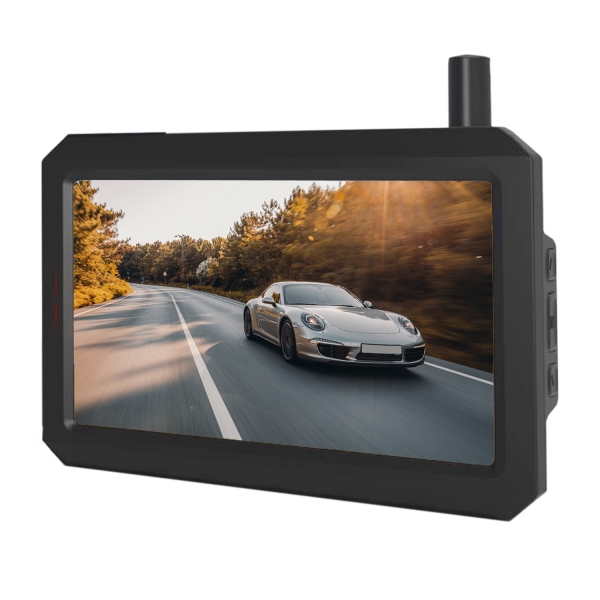

    MONITOR

    Size 5"
    Resolution 480*272
    Brightness 300cd/m2
    Power Supply DC12V/24V
    Working Current MAX 150mA
    Latency time 170 ms
    Standby current 35 uA
    Operating Temperature -20℃~65℃
