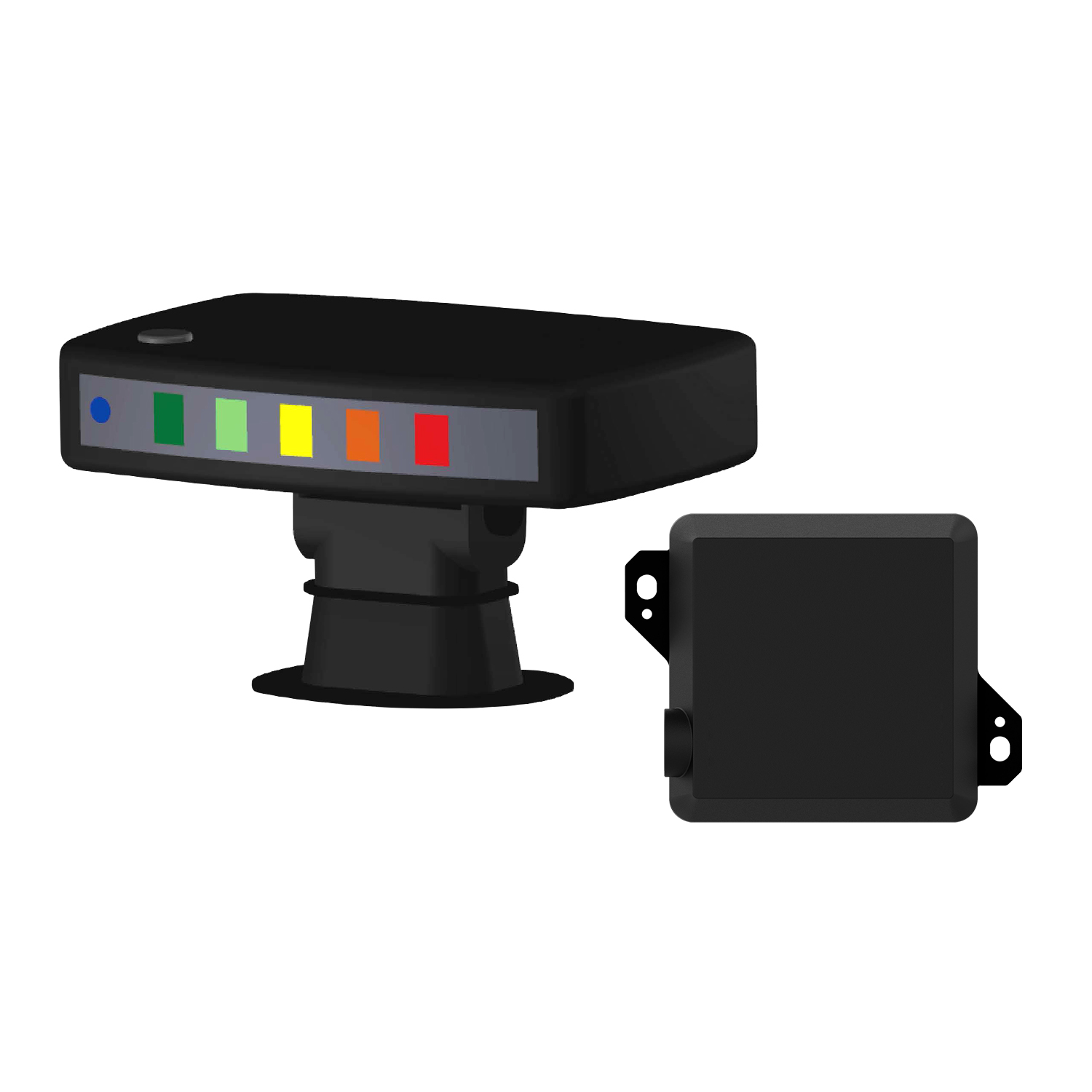

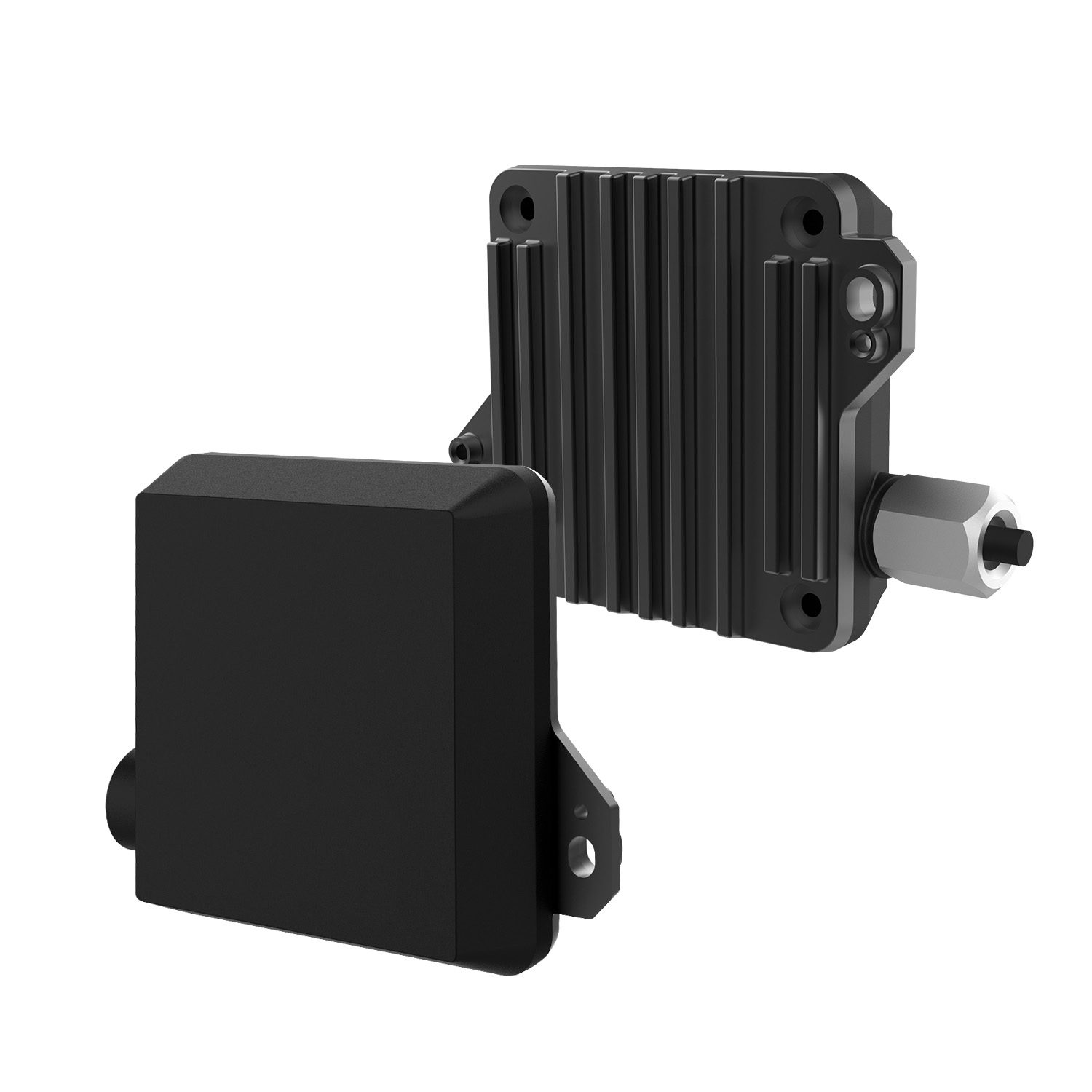

R101-Blind Spot Detection Radar

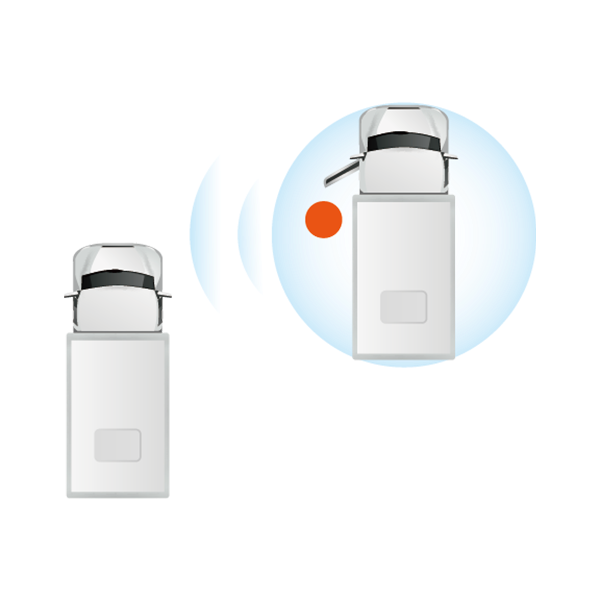

‧ BSD Region

Rear right / left areawidth : 3.8mLength : depends on the speed from 4m to 10m.

‧ Warning conditions

After the vehicle passes through the left and right BSD areas, the LED lights will light up to remind the driver.

‧ Warning

LED lights

‧ Note

When the speed is > 20 km/hr, this function will be activated.

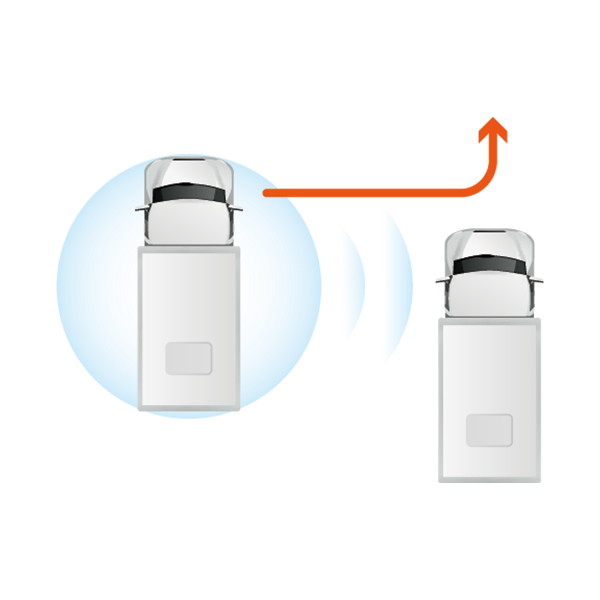

‧ LCA Region

The width of the rear right/left area is 3.8m.The length detection range is 40m.

When the distance to the vehicle is less than 20m, a Warning Alert will be activated (TTC<2.5sec).

‧ Warning conditions

When the turn signal is turned on and the vehicle passes through the LCA area on the same side, the buzzer will start and the LED light will flash.

‧ Note

This function will be activated when the vehicle speed exceeds 20 km/h.

‧ RCTA Region

‧ Warning conditions

When the car is in reverse gear and the car passes through the RCTA area, the buzzer will be activated and the LED light will flash.

‧ RCTA Region

‧ Warning conditions

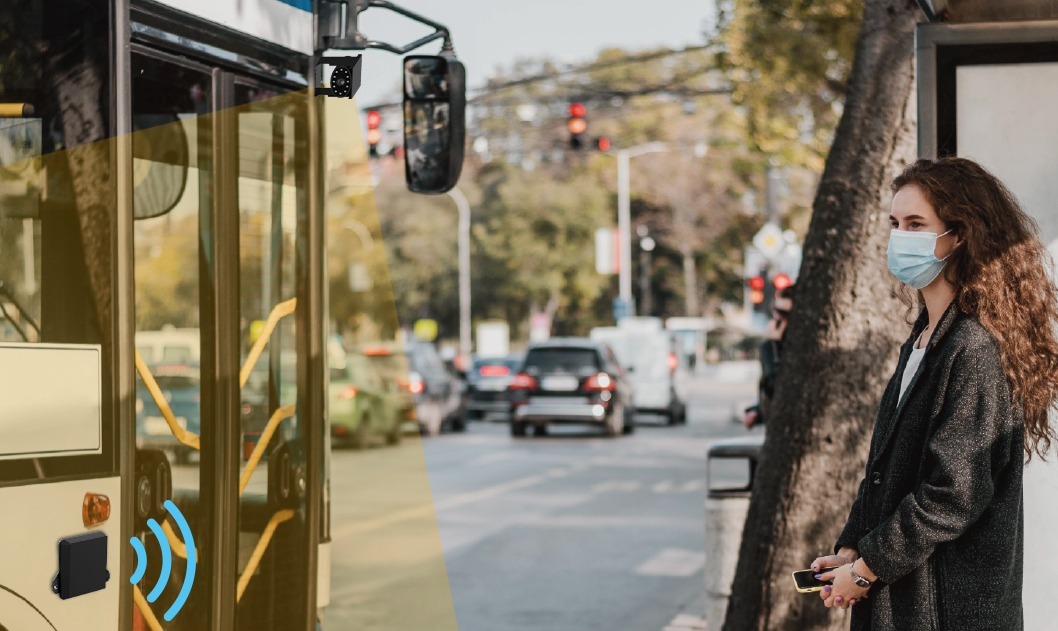

When the vehicle is parked and the ACC is still on, apply the hand brake and the DOW function will be activated for 2 minutes. When it reaches 2 minutes, a beep will sound to inform the driver that this function will be terminated soon. The driver can extend the working time by releasing and then pulling the handbrake again.

‧ Warning conditions

LED+Buzzer
