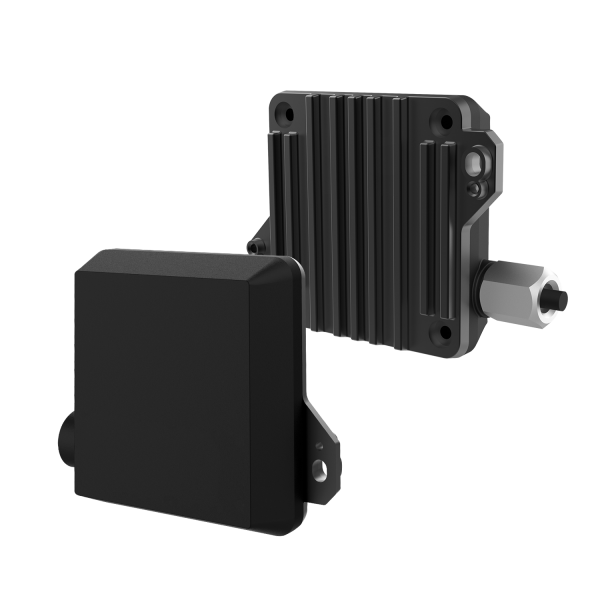

R102-Obstacle Detection Radar

Millimeter Wave Technology

Comparison

add to require

Features

Heavy-duty radar sensor systems

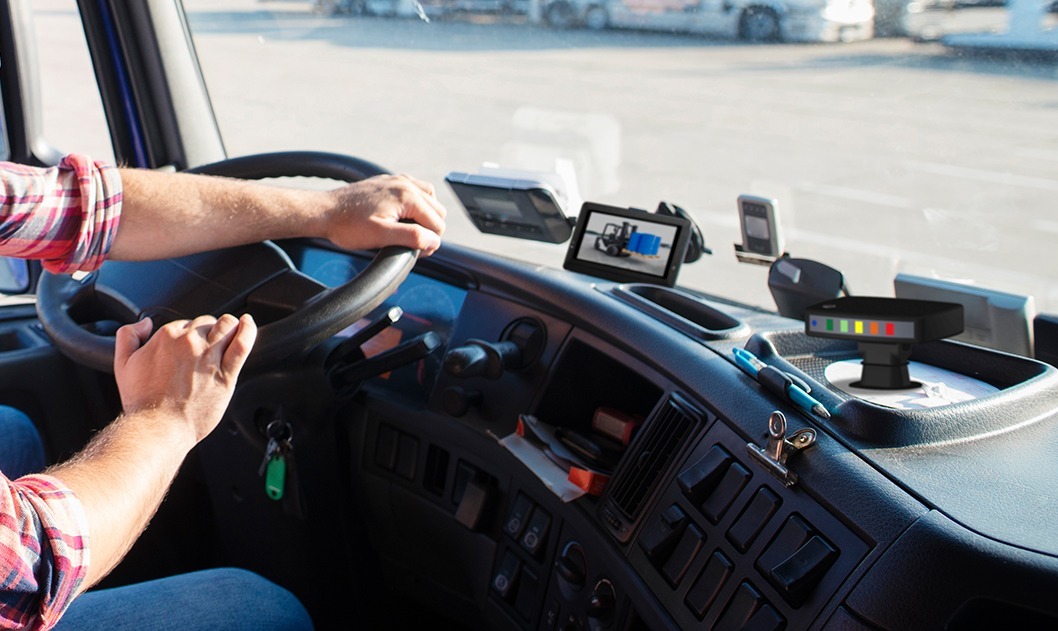

Front collision warning & Rear collision warning for people and objects, accidents reduced significantly. Excellent user interface: Visual and audible warnings – alerting the operator whose attention cannot reach all danger areas. Alarm region can be programmed based on specific application requirements.Working effectively in harsh environments and in poor visibility such as darkness, smoke and fog.

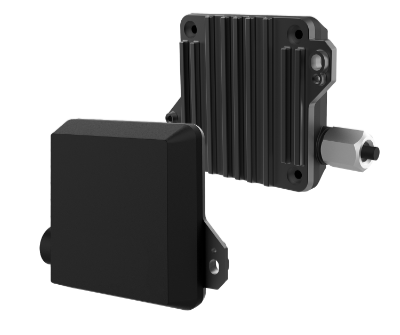

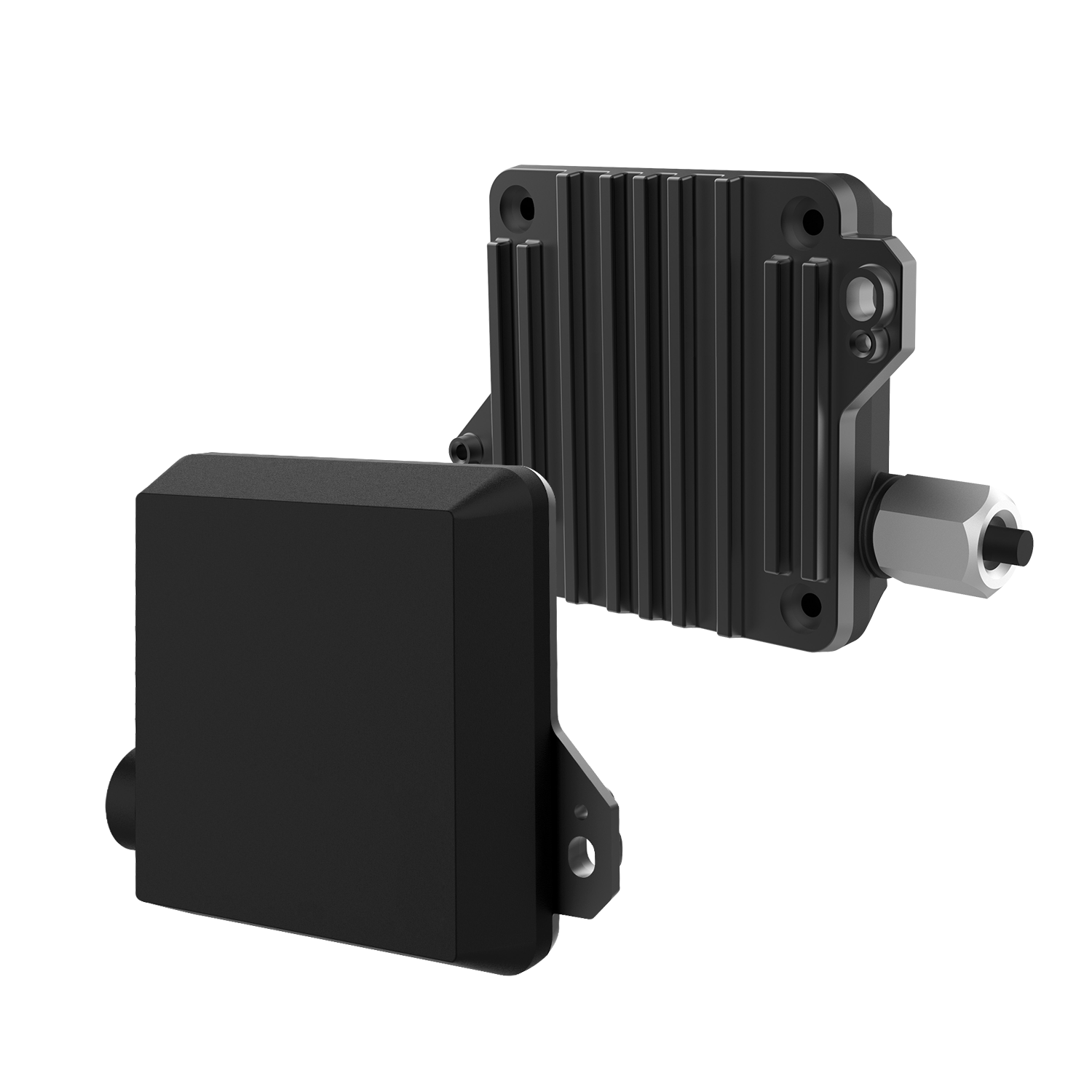

Obstacle detection Radar

77Ghz automotive FMCW radar.
Multimode to enhance the object detection & minimise false alarm.

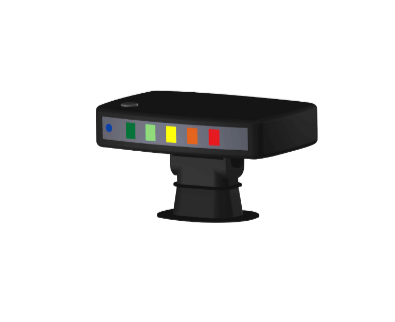

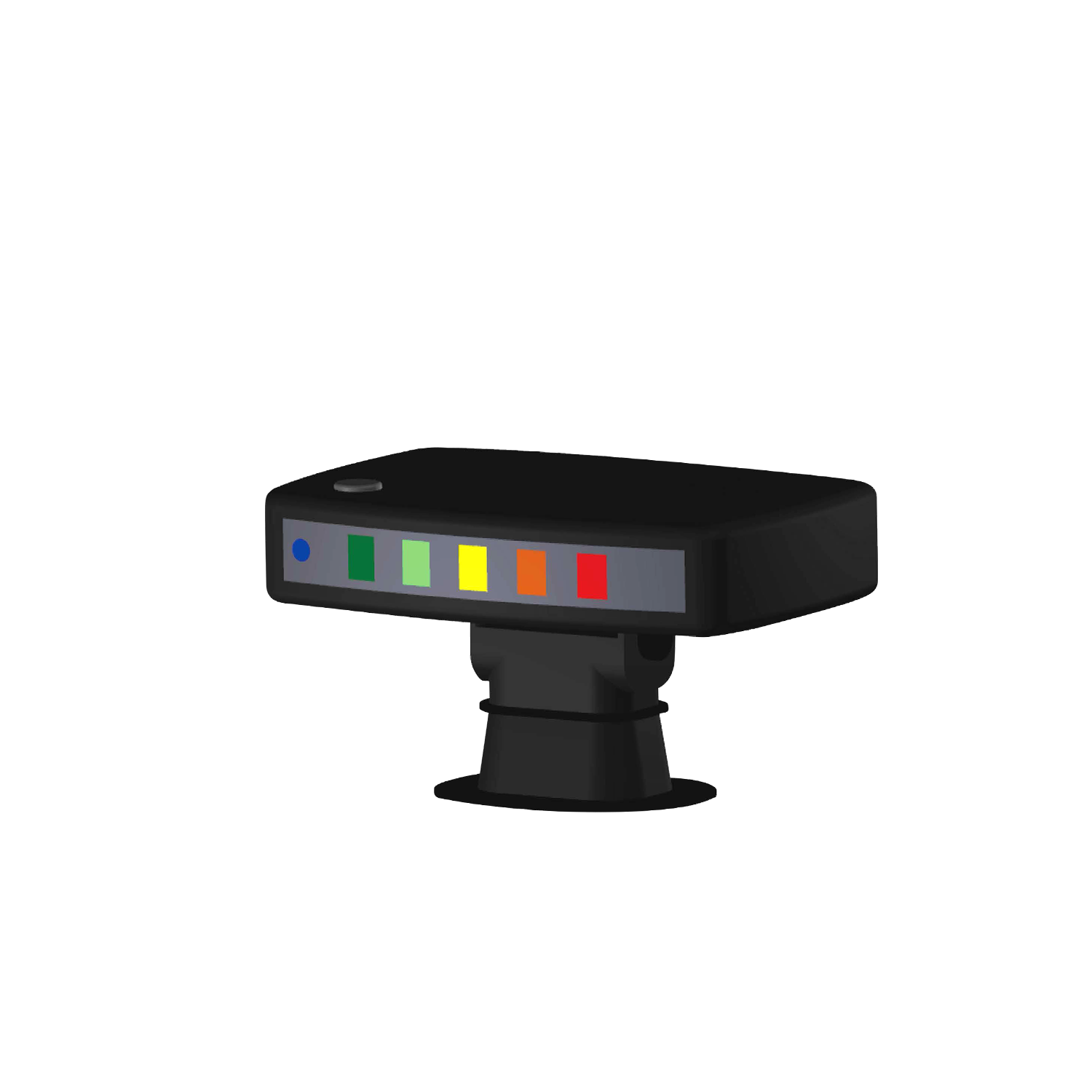

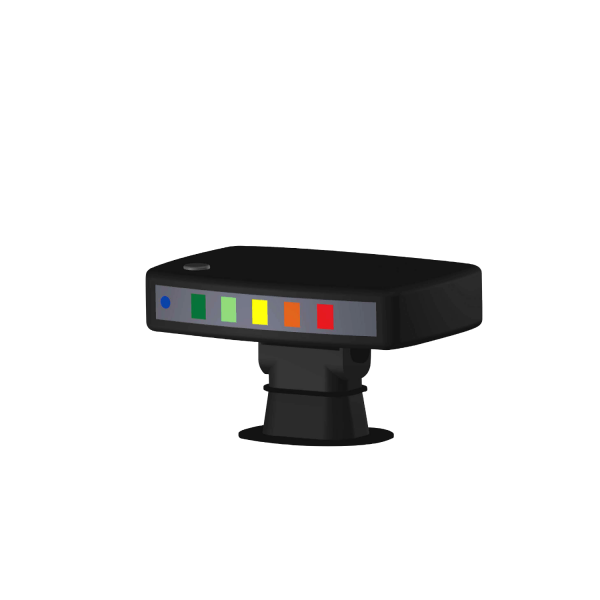

3 stages audible and 5 stages easy-to-read visual display
Programmable Alarm distance
Data Output to external system for high level integration Position (X;Y); velocity; Signal strength
Suitable for standalone and as a subsystem.
Suitable for both on- and off-road applications
Heavy duty – Designed for severe weather conditions , wide temperature operation, insensitive to darkness, smoke and fog.

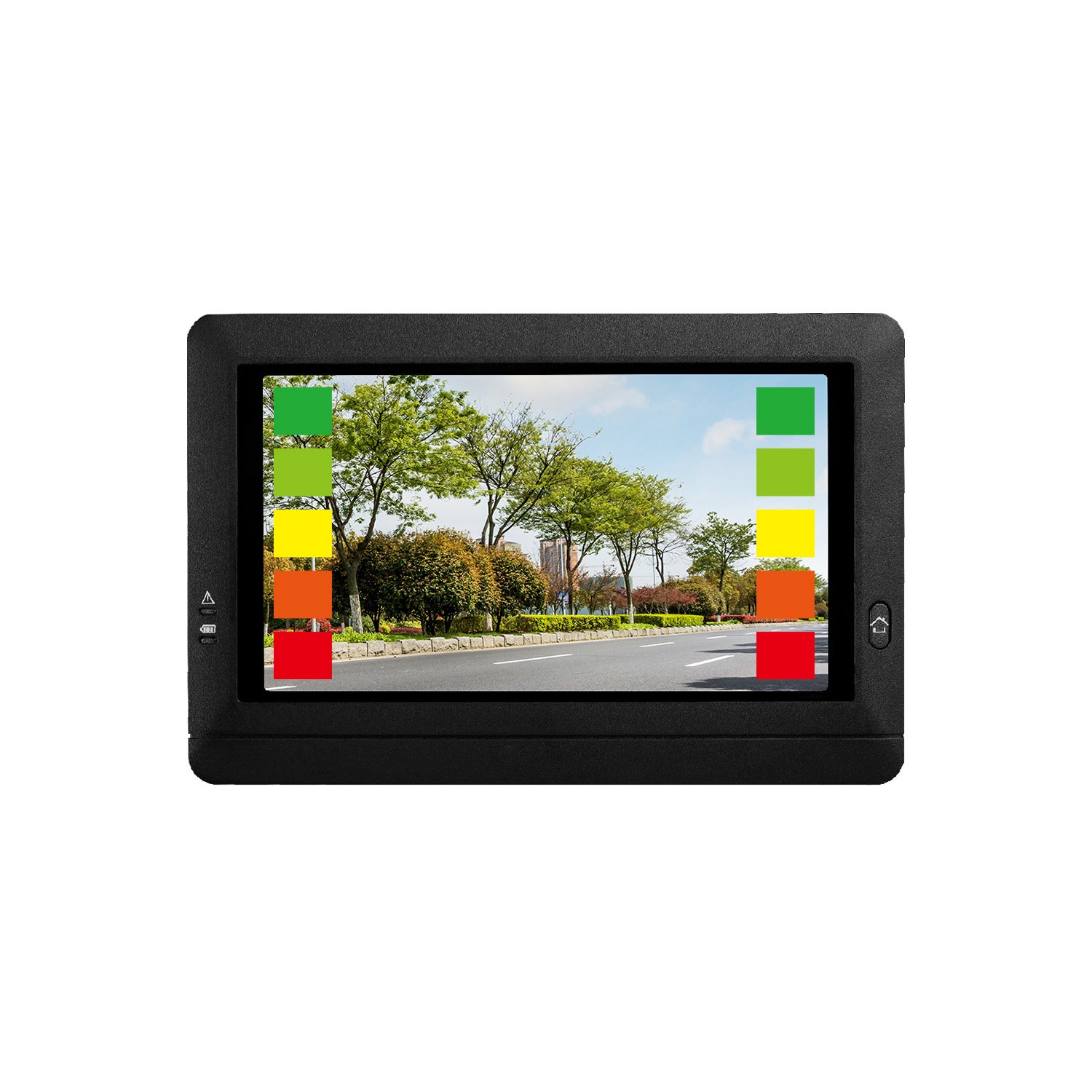

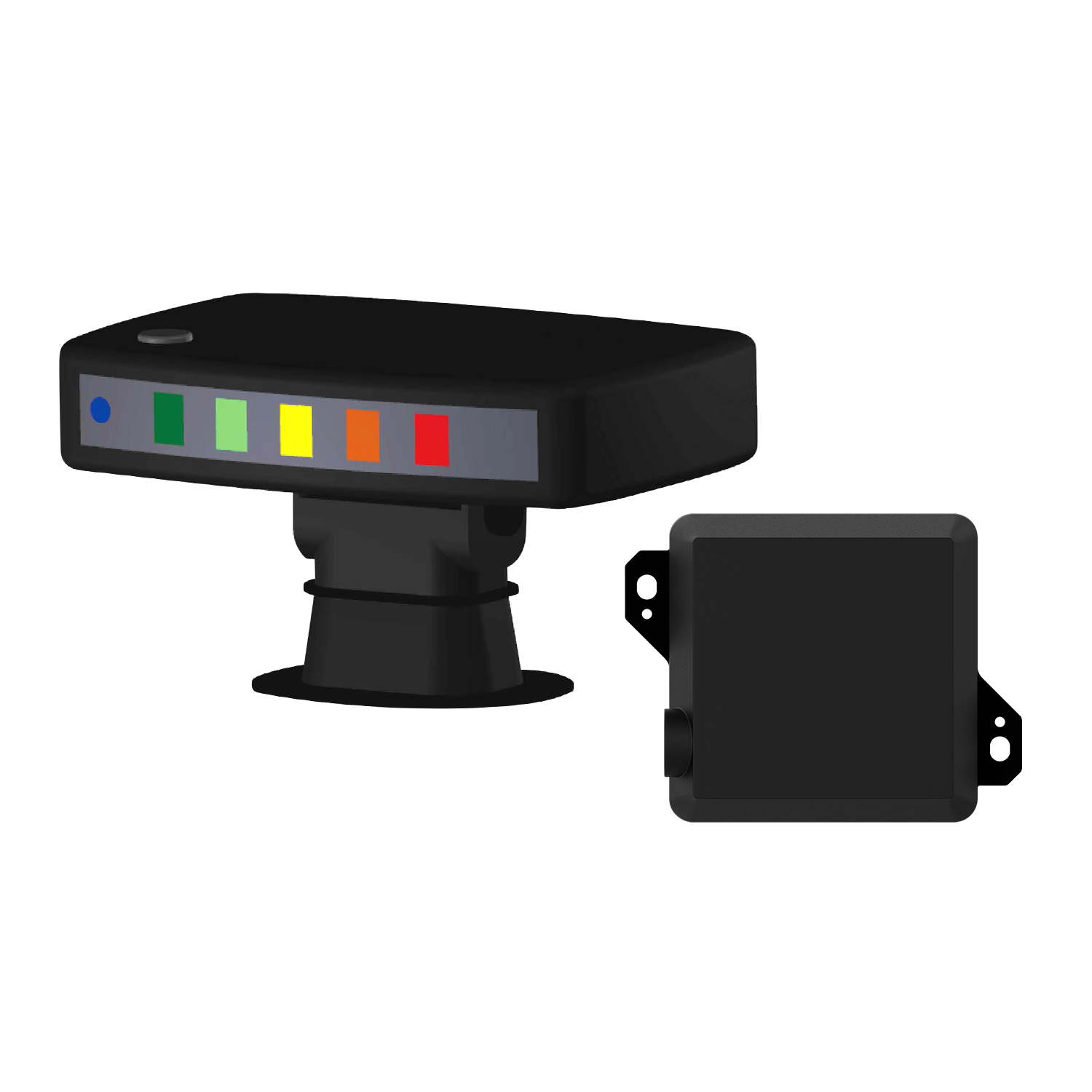

Water Proof Display & ECU

Heavy duty display & ECU.
Alarm region can be set to the width of 2m to 10m and 1m to 30m in length.
3 stages audible and 5 stage easy-to-read visual display
RS-232 interface for obstacle information to host system (Coordinate; velocity; Alarms)

Radar

Image sensor	Radar for Front&Rear collision warning
Radar type	FMCW
Operational Frequency	77 / 79
Detection Range	80m
Range resolution	0.4m / 0.1m (dual Mode)
Velocity range	100km/hr
Velocity resolution	0.25m/sec
Angle Range	120 degrees (<30m);30degrees (>30m)
